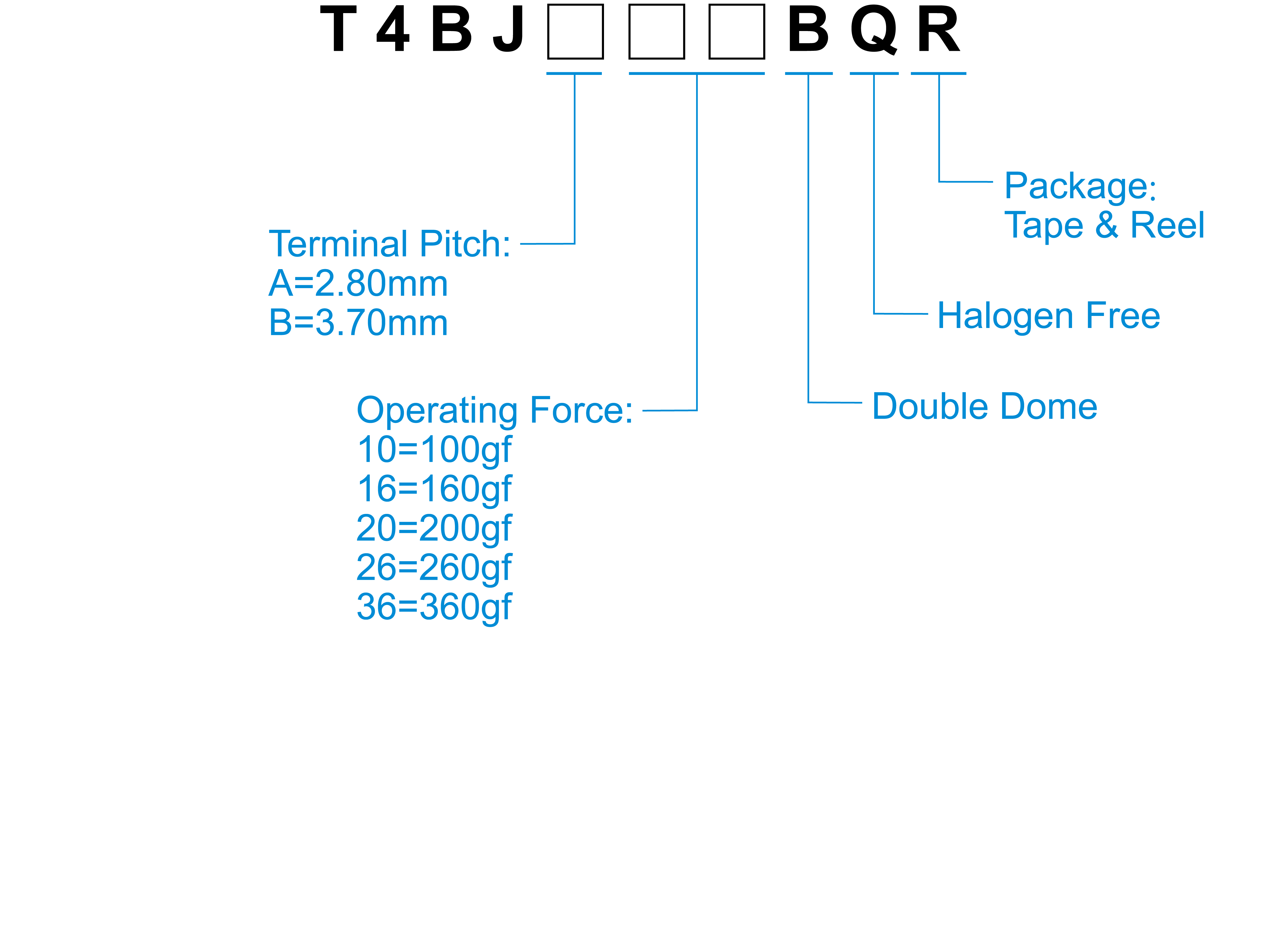

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 100V AC / 1 minute |
| Operating Force | 100±50gf / 160±50gf / 200±50gf 260±50gf / 360±60gf |
| Travel | 0.2mm |
| Operating Life | 200,000 cycles for 360gf 500,000 cycles for 260 / 200gf 1,000,000 cycles for 160 / 100gf |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
T4BJ
Download Directory| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| T4BJA10BQ | Vertical Push | 2.8 | 100 | 0.2 | 1000000 | - |
| T4BJA16BQ | Vertical Push | 2.8 | 160 | 0.2 | 1000000 | - |
| T4BJA20BQ | Vertical Push | 2.8 | 200 | 0.2 | 500000 | - |
| T4BJA26BQ | Vertical Push | 2.8 | 260 | 0.2 | 500000 | - |
| T4BJA36BQ | Vertical Push | 2.8 | 360 | 0.2 | 200000 | - |
| T4BJB10BQ | Vertical Push | 3.7 | 100 | 0.2 | 1000000 | - |
| T4BJB16BQ | Vertical Push | 3.7 | 160 | 0.2 | 1000000 | - |
| T4BJB20BQ | Vertical Push | 3.7 | 200 | 0.2 | 500000 | - |
| T4BJB26BQ | Vertical Push | 3.7 | 260 | 0.2 | 500000 | - |
| T4BJB36BQ | Vertical Push | 3.7 | 360 | 0.2 | 200000 | - |
