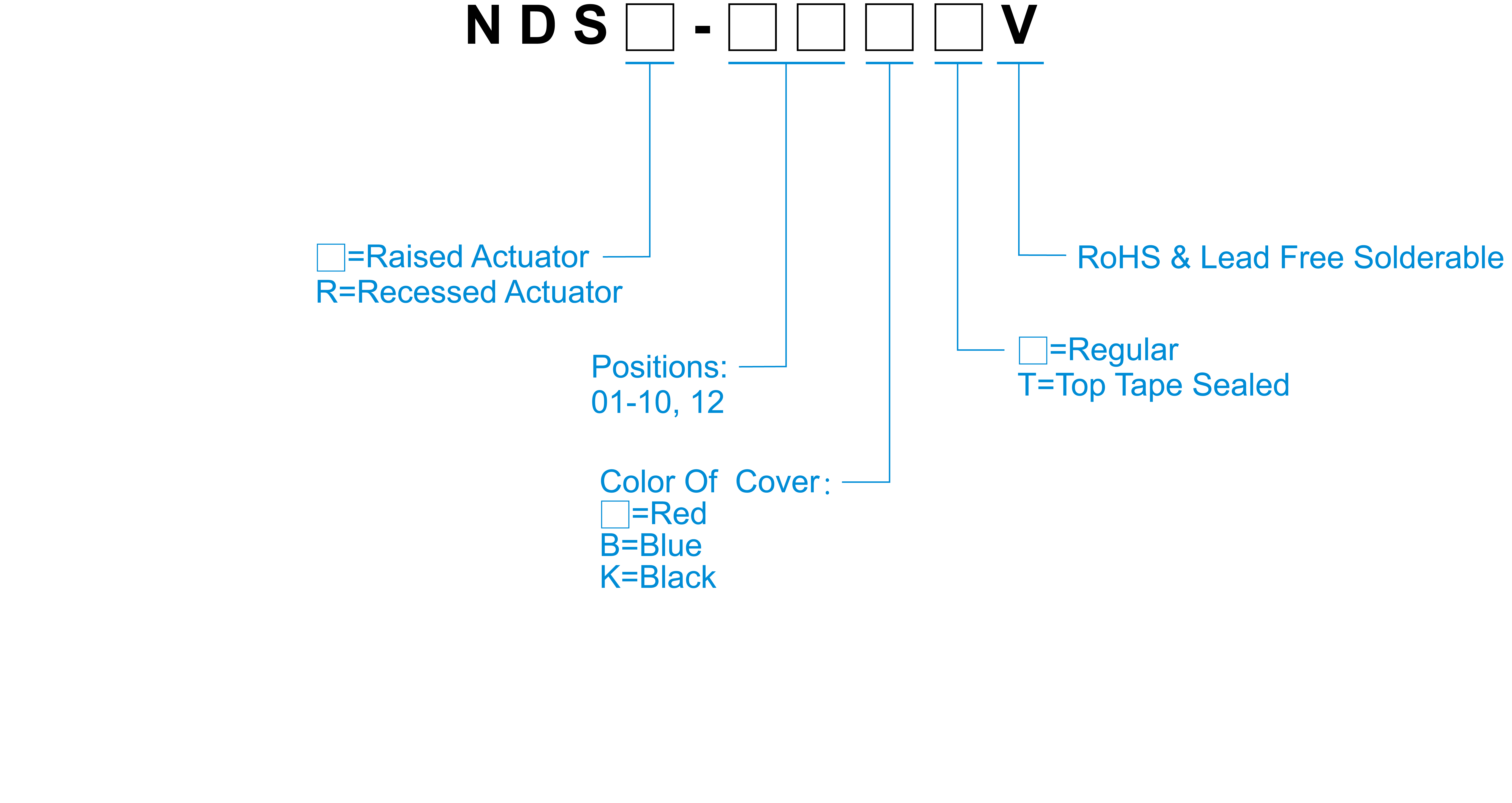

How to Order
Specification
| Contact Rating | 25mA, 24V DC |
|---|---|
| Contact Resistance | 50 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 500V AC / 1 minute |
| Operating Force | 1000gf Max. |
| Travel | 2mm |
| Operating Life | 2,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
NDS
下載目錄| 料號 | 腳距(mm) | 推鈕數 | 推鈕位置 | 貼膠帶(Y/N) | Mount type |
| NDS-01□V | 7.62 | 1 | OFF | N | DIP |
| NDS-02□V | 7.62 | 2 | OFF | N | DIP |
| NDS-03□V | 7.62 | 3 | OFF | N | DIP |
| NDS-04□V | 7.62 | 4 | OFF | N | DIP |
| NDS-05□V | 7.62 | 5 | OFF | N | DIP |
| NDS-06□V | 7.62 | 6 | OFF | N | DIP |
| NDS-07□V | 7.62 | 7 | OFF | N | DIP |
| NDS-08□V | 7.62 | 8 | OFF | N | DIP |
| NDS-09□V | 7.62 | 9 | OFF | N | DIP |
| NDS-10□V | 7.62 | 10 | OFF | N | DIP |
