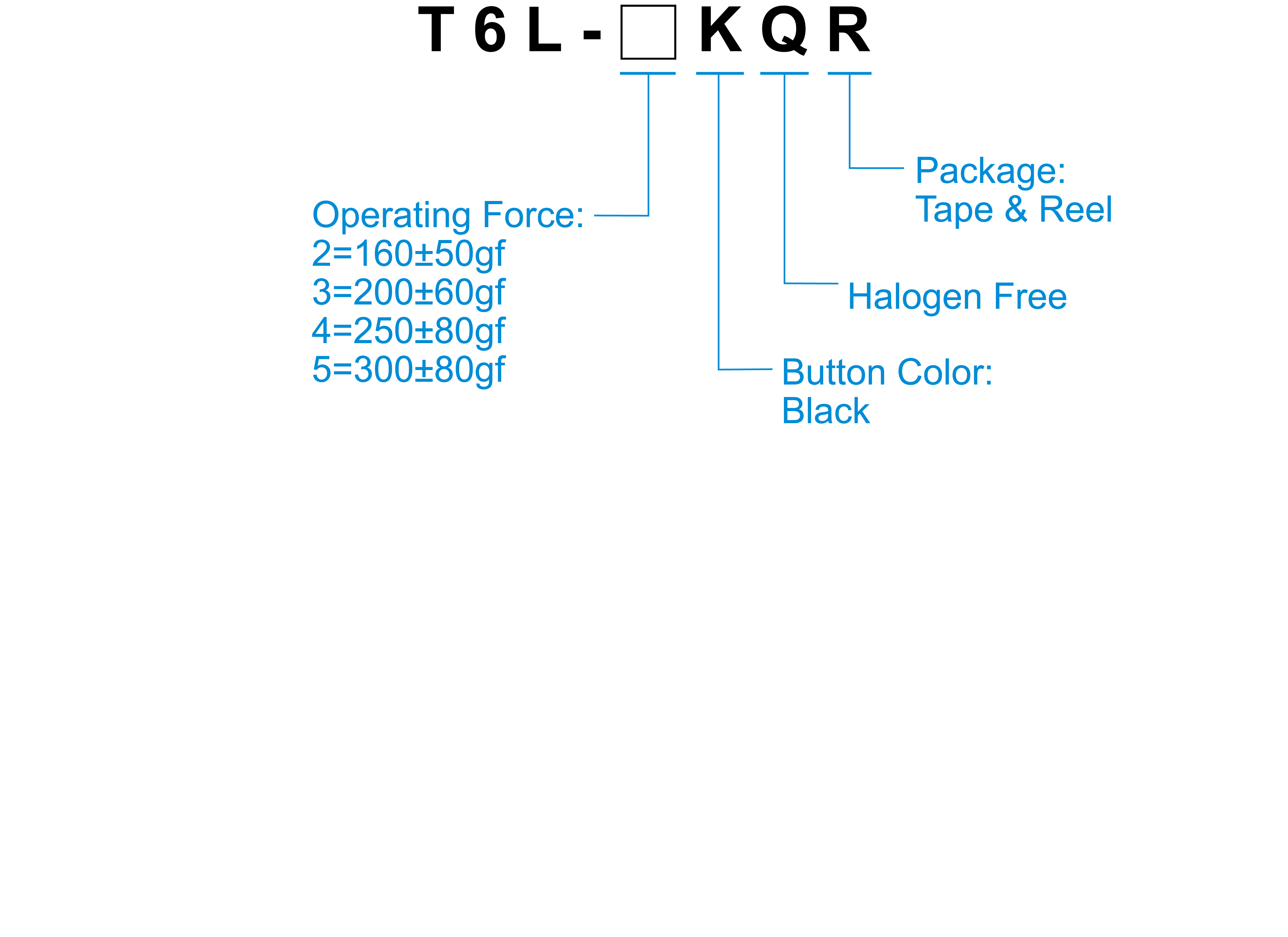

How to Order
Specification
| Contact Rating | 10uA,1V DC to 50mA, 16V DC |
|---|---|
| Contact Resistance | 100mΩ Max. 500V DC |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 250V AC/1 minute |
| Operating Force | 160±50gf/200±60gf/250±80gf/300±80gf |
| Travel | 1.3mm |
| Operating Life | 100,000 cycles (160gf/200gf/250gf/300gf) |
| Operating Temp. | -40°C~+90°C |
| Storage Temp. | -40°C~+90°C |
T6L
下載目錄| 料號 | 操作方向 | 高度(mm) | 動作力(gf) | 行程(mm) | 操作壽命(cycles) | 防塵水 |
| T6L2KQ | Vertical Push | 5 | 160 | 1.3 | 100000 | |
| T6L3KQ | Vertical Push | 5 | 200 | 1.3 | 100000 | |
| T6L4KQ | Vertical Push | 5 | 250 | 1.3 | 100000 | |
| T6L5KQ | Vertical Push | 5 | 300 | 1.3 | 100000 |
