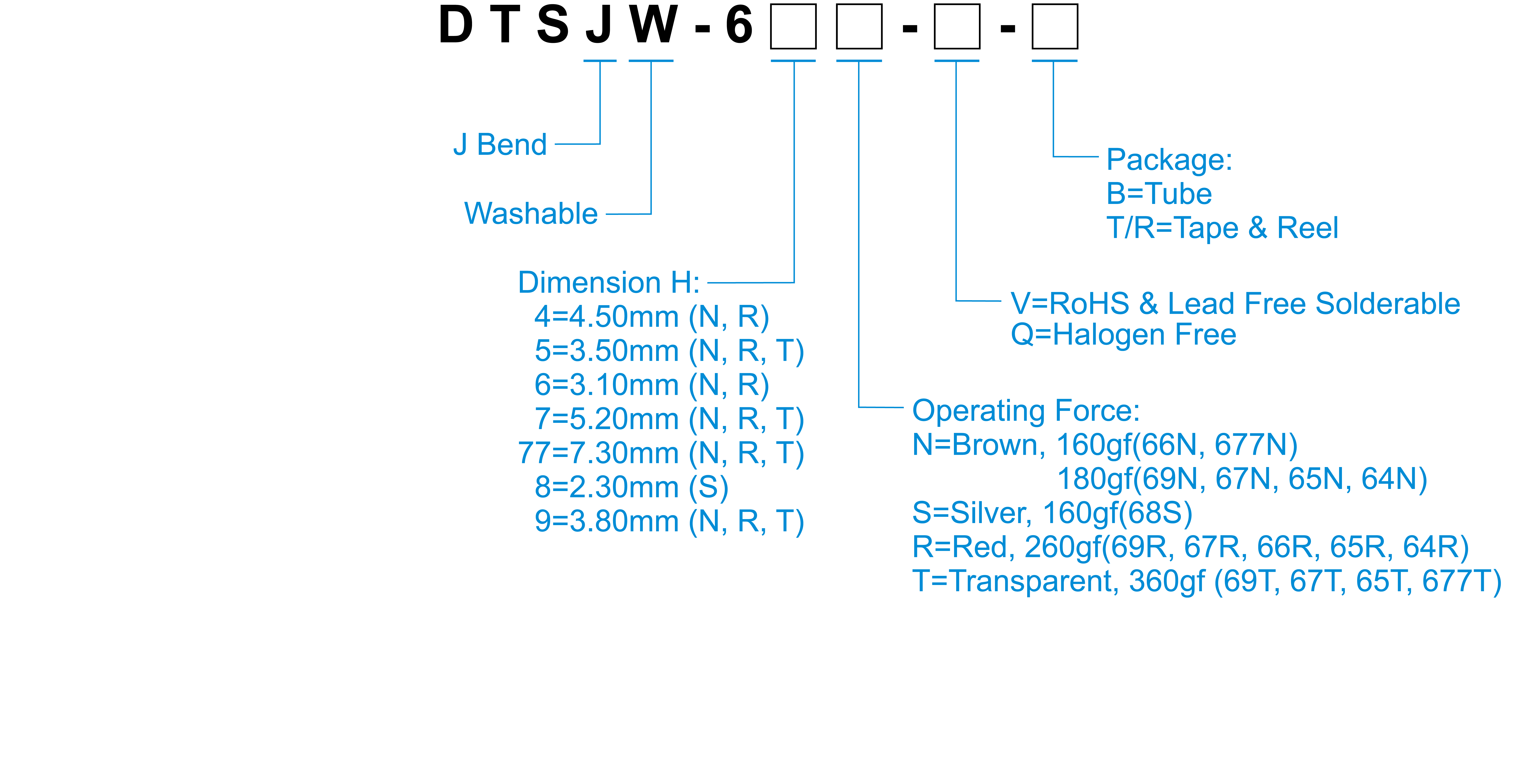

How to Order
Specification
| Contact Rating | 50mA,12V DC |
|---|---|
| Contact Resistance | 100mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 160±50gf,Brown(N) 66/677 160±50gf,Silver(S) 68 180±50gf,Brown(N) 69/67/65/64 260±70gf,Red(R) 69/67/66/65/64 360±90gf,Transparent(T) 69/67/65/677 |
| Travel | 0.25mm 68S/66N/66R/677 0.45mm(69/67N,R)(65/64N,R,T) 0.6mm 69/67T |
| Operating Life | 100,000 cycles Min.for 66/68/677 500,000 cycles Min.for 69/67/65/64 |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
DTSJW-6
下載目錄| 料號 | 操作方向 | 高度(mm) | 動作力(gf) | 行程(mm) | 操作壽命(cycles) | 防塵水 |
| DTSJW-64N-□ | Vertical Push | 4.5 | 180 | 0.45 | 500000 | ● |
| DTSJW-64R-□ | Vertical Push | 4.5 | 260 | 0.45 | 500000 | ● |
| DTSJW-65N-□ | Vertical Push | 3.5 | 180 | 0.45 | 500000 | ● |
| DTSJW-65R-□ | Vertical Push | 3.5 | 260 | 0.45 | 500000 | ● |
| DTSJW-65T-□ | Vertical Push | 3.5 | 360 | 0.45 | 500000 | ● |
| DTSJW-66N-□ | Vertical Push | 3.1 | 160 | 0.25 | 100000 | ● |
| DTSJW-66R-□ | Vertical Push | 3.1 | 260 | 0.25 | 100000 | ● |
| DTSJW-67N-□ | Vertical Push | 5.2 | 180 | 0.45 | 500000 | ● |
| DTSJW-67R-□ | Vertical Push | 5.2 | 260 | 0.45 | 500000 | ● |
| DTSJW-67T-□ | Vertical Push | 5.2 | 360 | 0.6 | 500000 | ● |
