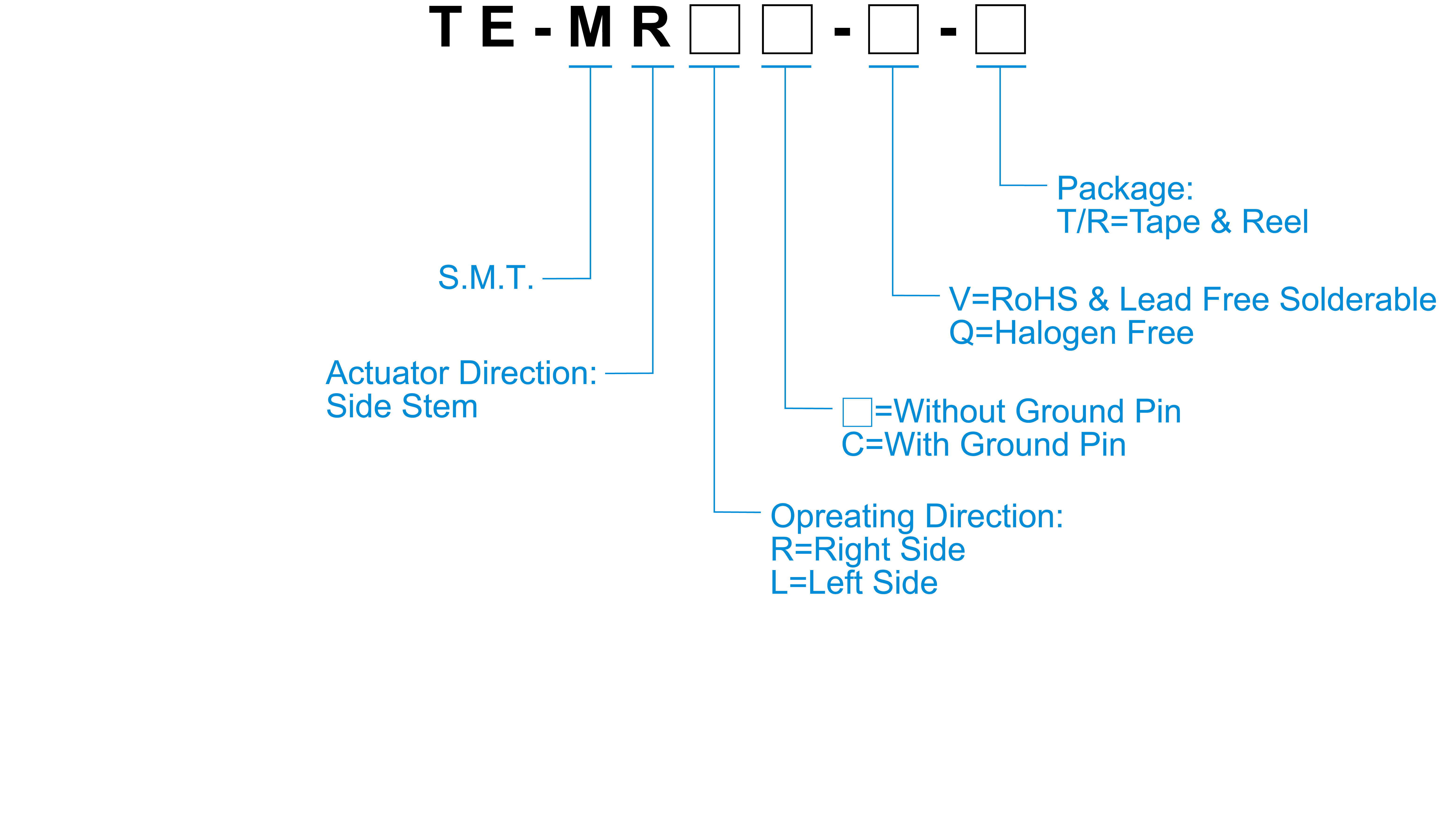

How to Order
Specification
| Contact Rating | 50mA, 20V DC |
|---|---|
| Contact Resistance | 1Ω Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 100V AC / 1 minute |
| Operating Force | 50gf Max. |
| Operating Position | 2.15mm |
| Operating Life | 100,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
TE-MR
下載目錄| 料號 | 操作方向 | 端子形狀 | 操作力(gf) | OP_1(mm) | OP_2(mm) | 防塵水 |
| TE-MR□□-□ | 1P1T | For Lead | 50 | 2.15 | - | - |
