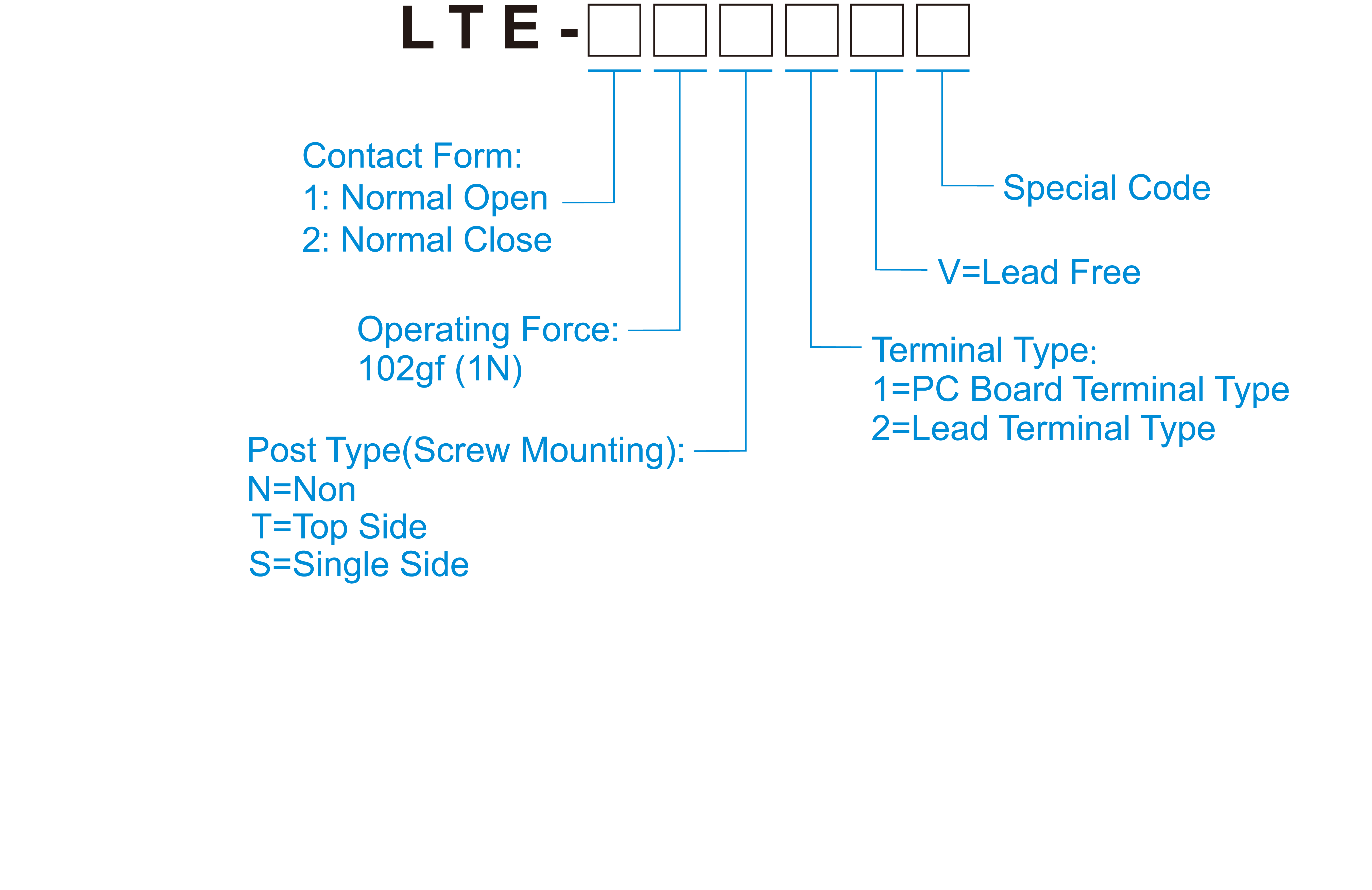

How to Order
Specification
| Contact Rating | 0.05mA, 5V DC 100mA, 12V DC |
|---|---|
| Contact Resistance | 500 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 500V AC / 1 minute |
| Operating Force | 102±50gf |
| Operating Position | 4.1±0.3mm |
| Operating Life | 300,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
LTE
カタログダウンロード| 料號 | 操作方向 | 端子形状 | OP_1(mm) | OP_2(mm) | 防塵防水 | |
| LTE-□1□1V1 | 1P1T | For PC board | 102 | 4.1 | - | - |
| LTE-□1□2V1 | 1P1T | For Lead | 102 | 4.1 | - | - |
