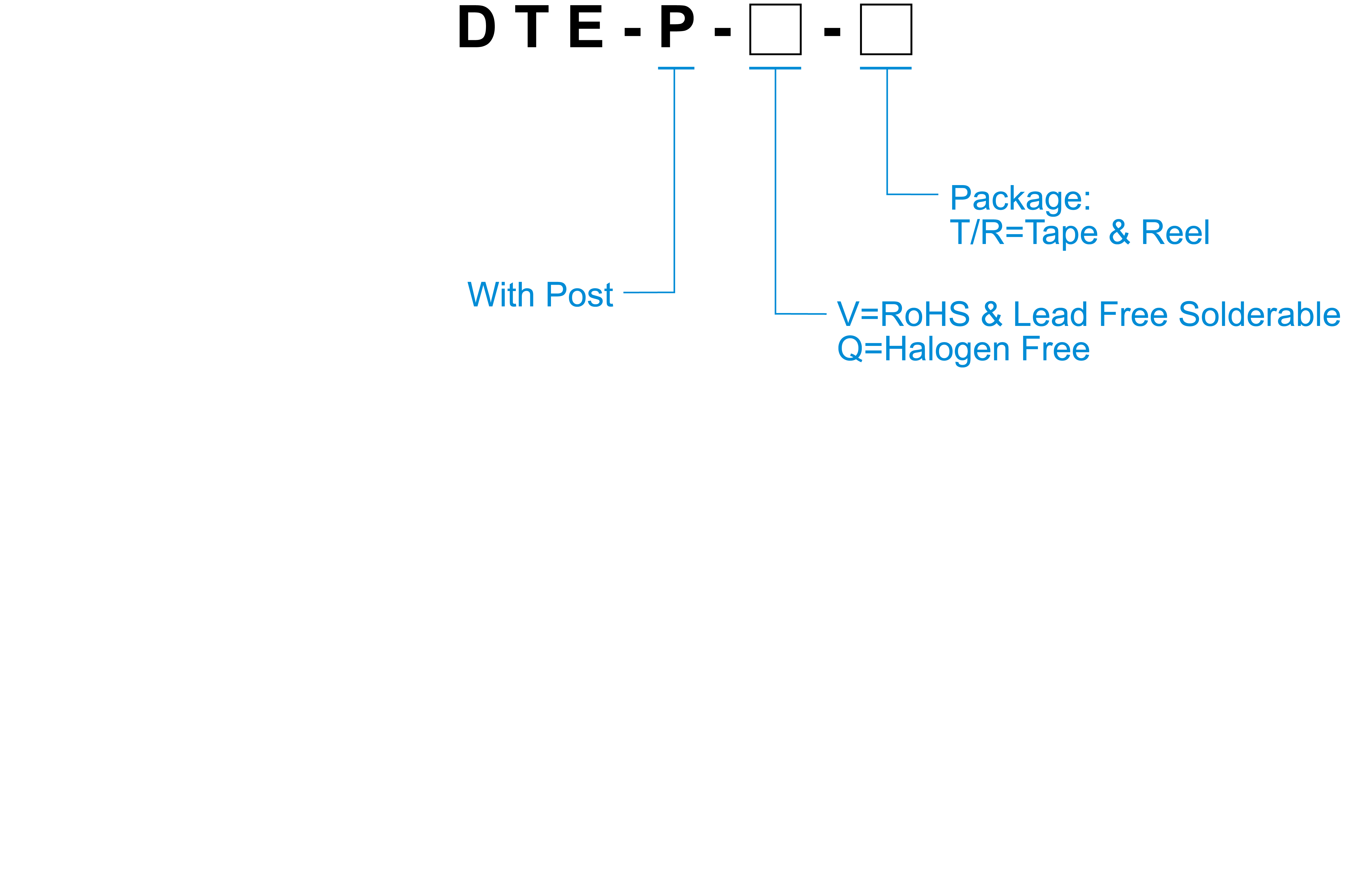

How to Order
Specification
| Contact Rating | 10mA, 5V DC |
|---|---|
| Contact Resistance | 500mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 100V AC / 1 minute |
| Operating Force | 30gf Max. |
| Operating Position | 1.5mm |
| Operating Life | 100,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | Operating Direction | Terminal | OP_1(mm) | OP_2(mm) | Dustproof and Waterproof | |
| DTE-P-□ | 1P2T | For Lead | 30 | 1.5 | - | - |
