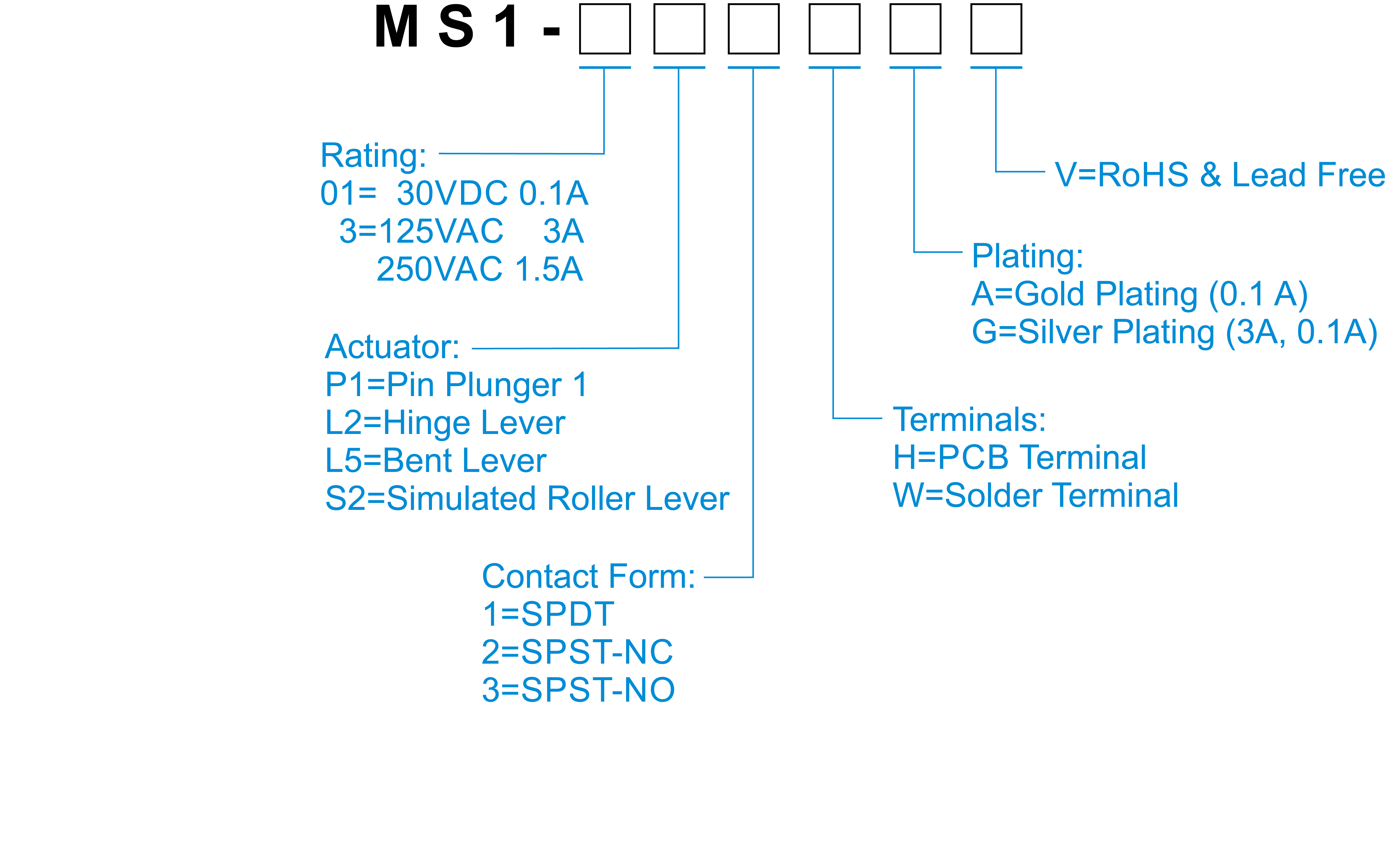

How to Order
Specification
| Contact Rating 1 | 100mA, 30V DC |
|---|---|
| Contact Rating 2 | 300mA, 125V AC / 150mA 250V AC |
| Mechanical Durability 1 | 1,000,000 cycles Min. |
| Mechanical Durability 2 | 500,000 cycles Min. |
| Electrical Durability 1 | 30,000 cycles Min. |
| Electrical Durability 2 | 6,000 cycles Min. |
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. |
| Dielectric Strength 1 | Between terminals of same polarity"AC 600V 1 minute" |
| Dielectric Strength 2 | Between current-carrying metal parts and ground "AC 1,500V 1 minute" |
| Dielectric Strength 3 | Between each terminals and non-current-carrying metal part "AC 1,500V 1 minute" |
| Operating Temp. | -25°C~+75°C |
| 料號 | Contact Form | Terminal | ||
| MS1-01P11HGV | SPDT | PCB Terminal | 76 | 6.9 |
| MS1-01P12HGV | SPST-NC | PCB Terminal | 76 | 6.9 |
| MS1-01P13HGV | SPST-NO | PCB Terminal | 76 | 6.9 |
| MS1-01P11WGV | SPDT | Solder Terminal | 76 | 6.9 |
| MS1-01P12WGV | SPST-NC | Solder Terminal | 76 | 6.9 |
| MS1-01P13WGV | SPST-NO | Solder Terminal | 76 | 6.9 |
| MS1-03P11HGV | SPDT | PCB Terminal | 90 | 6.9 |
| MS1-03P12HGV | SPST-NC | PCB Terminal | 90 | 6.9 |
| MS1-03P13HGV | SPST-NO | PCB Terminal | 90 | 6.9 |
| MS1-03P11WGV | SPDT | Solder Terminal | 90 | 6.9 |
